Induction Melting

Induction melting is the process to melt the ferrous and non-ferrous metals for forming applications, tools & component casting and percious metal melting etc.

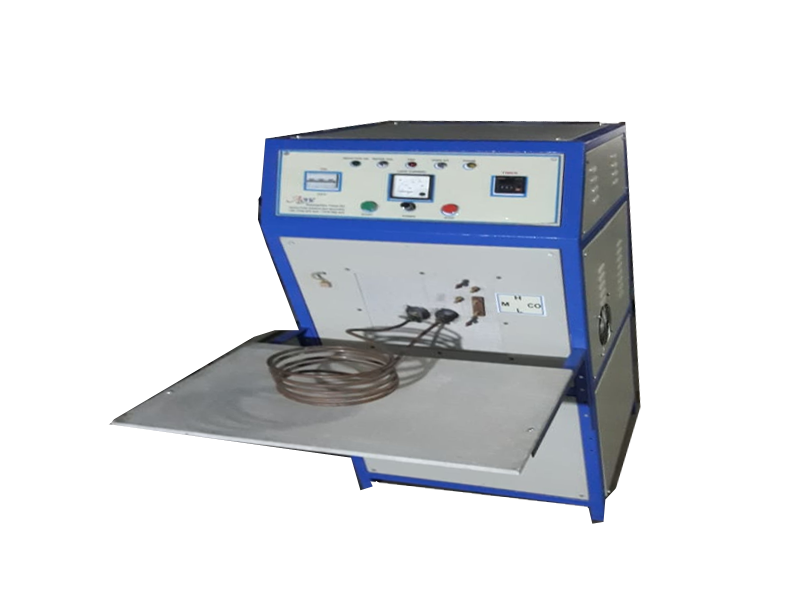

A-one Enterprise Induction Melting Furnace provides very efficient & time saving melting of metals for various applications

Product Details:

POWER RANGE1-5KW5-15KW. 15-50KW 50 -200KW
FREQUENCY RANGE5-600kHz01-400kHz01-30kHz01 – 30kHz
ADAPTATION TO CHANGE LOAD CHARECTERISTICSYESYESYESYES
POWER CONTROL MANUAL AUTO AUTO AUTO
LOAD SENSED SELF TUNING		 MANUALAUTOAUTOAUTO
SIZE (mm)W-225
B-500
H-430		W-530
B-640
H-1110		W-620
B-725
H-1370		W-1000
B-1090
H-1675
INPUT POWER RANGESINGLE PHASE
230V/50Hz.		THREE PHASE
230V/50Hz		THREE PHASE
440V/50Hz		THREE PHASE
440V/50Hz

In our Endeavour to make better products,A-One Enterprise reserves the right to change any specifications at any moment and without prior notice, to the models (including programming) and their accessories.

  • Gold Melting.
  • Silver Melting.
  • Levitation Melting Systems in microgravity of space.
  • Vacuum Induction Melting.
  • Platinum Melting.
  • Very high Temperature Induction Melting.
  • Crystal Growing.
  • Alloy Melting.
  • Aluminium Foundry.
    •
       Less oxidation loss
       Easier molten charge handling
       No pre-heating required
       Cost efficient & energy saving
       Highest system efficiency
       Highly adaptable for automation
       Eco-friendly due to noiseless and flameless operation
       No statutory approvals required
       Lesser risk involved compared to conventional methods
       Application Specific
       Auto or manual mode operation
       Improved power factor
       Tropicalised design
       Compact size
